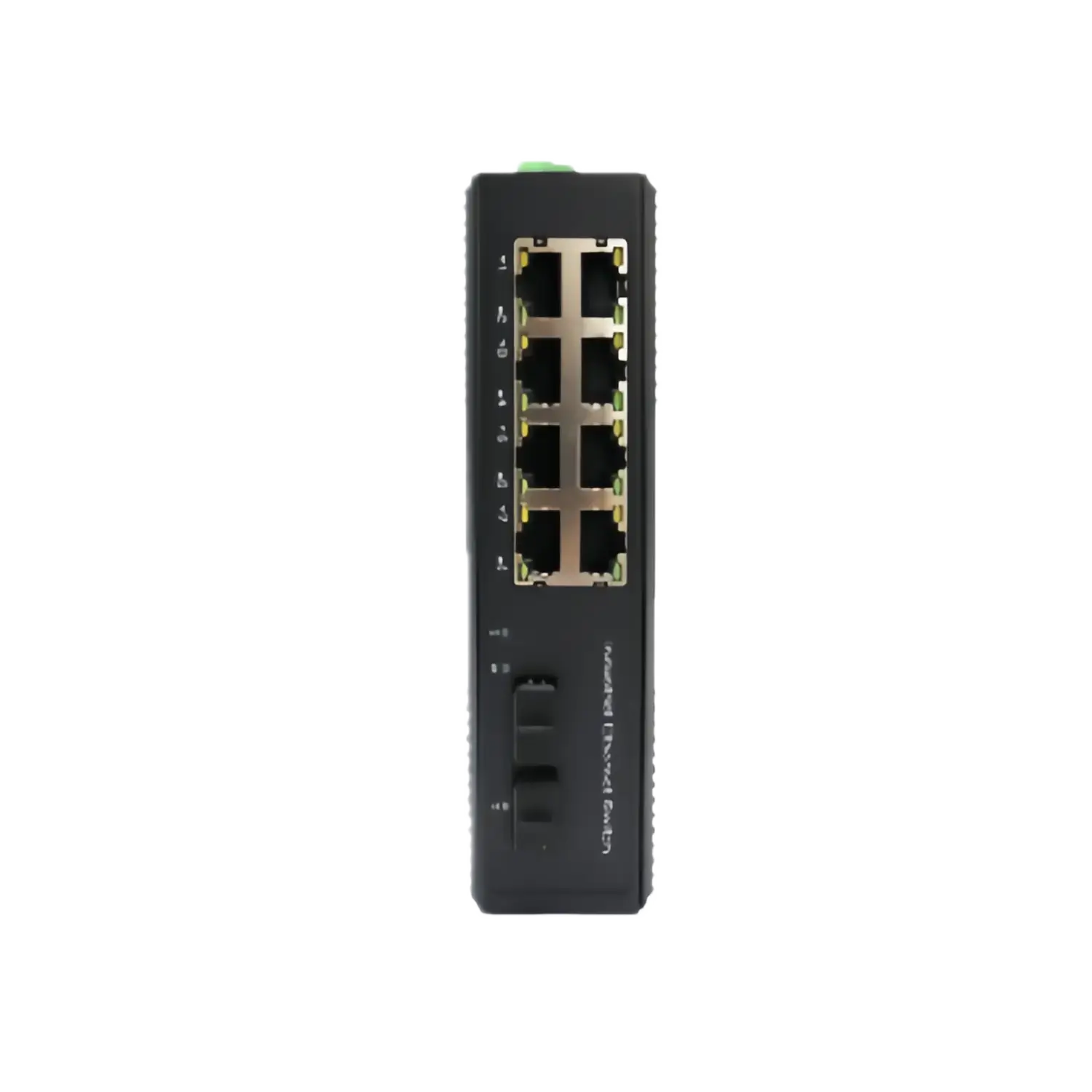

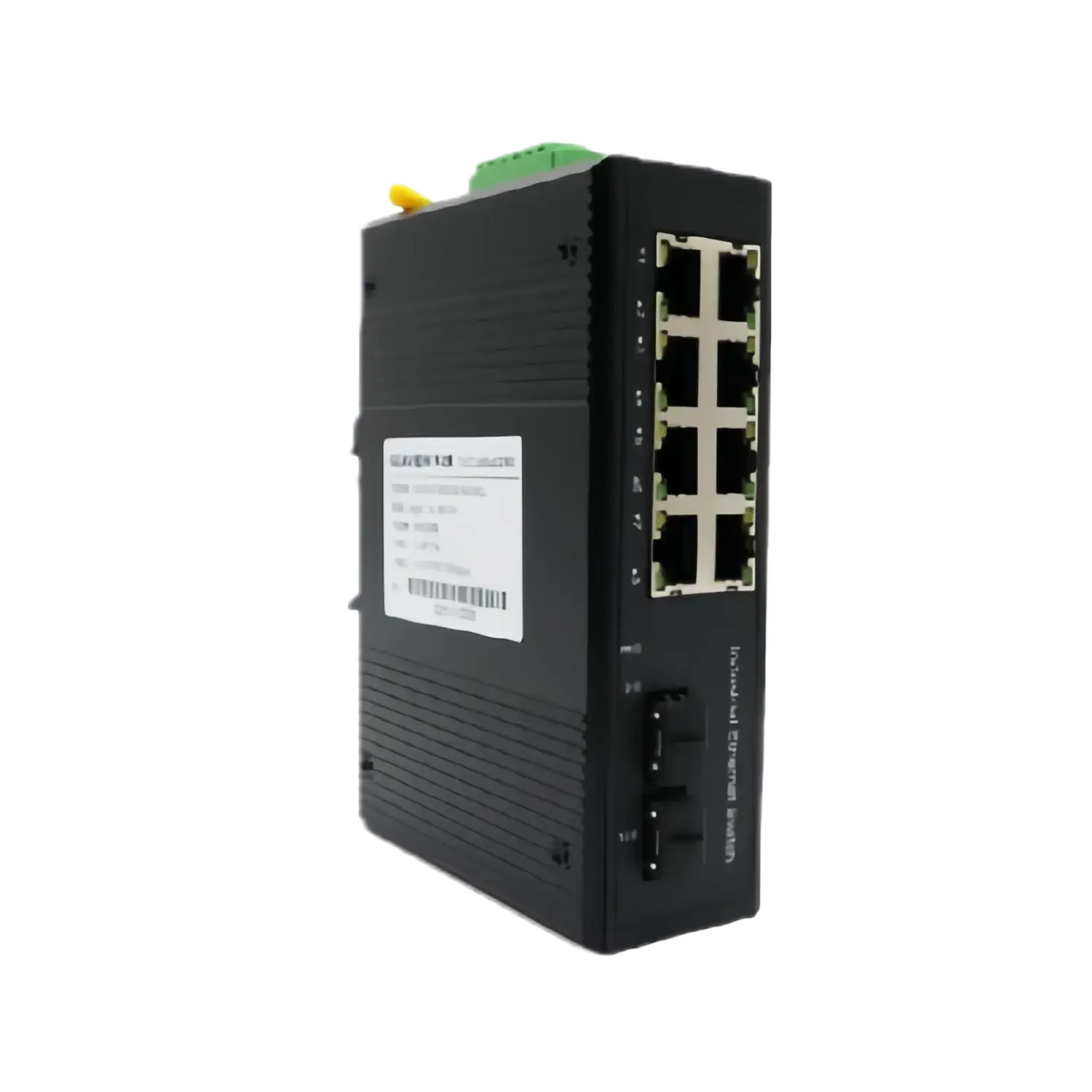

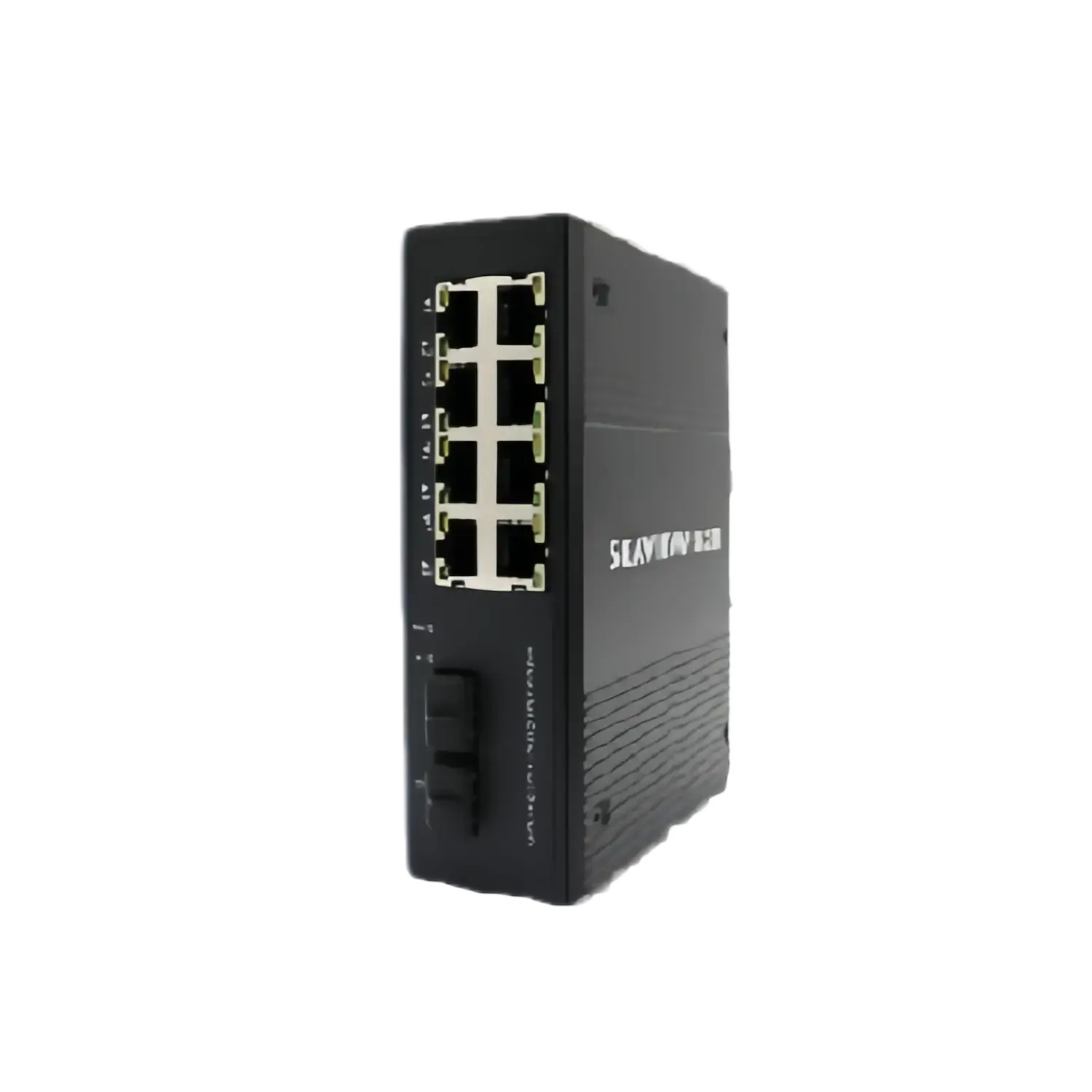

2 SFP Ports + 8 Gigabit Ports Industrial Unmanaged Switch
Model：SIE2000-E-8GE2GS-M0-L
- 8×10/100/1000Base-T RJ45 ports + 2×1000Base-X SFP fiber ports
- Switching capacity: 20Gbps
- Packet forwarding rate: 14.88Mpps
- MAC address table: 8K entries
- Packet buffer: 2M bit
- DC12-52V power input with reverse polarity protection
- 6KV surge protection, 8KV contact ESD, 15KV air ESD
- EMI Immunity: Class A
- IP41 protection, fanless DIN-rail design, -40°C to 75°C operating temperature
The SIE2000-E-8GE2GS-M0-L is a full gigabit unmanaged industrial switch with 8×10/100/1000Base-T Ethernet ports and 2×1000Base-X fiber ports. Operating at temperatures from -40℃ to 75℃, it performs reliably in challenging outdoor environments. Featuring DIN-rail mounting, IP41 protection, and status LEDs, it offers plug-and-play deployment. Its robust construction and high-performance design provide dependable networking solutions for various industrial settings.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-performance Processor |
| Interfaces | |
| Ethernet Ports | 8×10/100/1000Base-T (Auto-sensing) Full/Half duplex MDI/MDI-X (Auto-negotiation) Transmission distance: ≤100m |
| Fiber Ports | 2×1000Base-X Multimode: 850nm (0-550m), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40km), 1550nm (0-120km), 9.5μm/125μm |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane bandwidth: 20Gbps Forwarding rate: 14.88Mpps MAC table: 8K entries Packet buffer: 2M Latency: <3μs Switching mode: Store-and-forward Power consumption: <6W (non-PoE) |
| Power Parameters | |
| Power Interface | Input voltage: DC12-52V (non-PoE) Terminal: 6-pin 5.08mm pitch Dual power redundancy Reverse polarity protection |
| Operating Environment | |
| Temperature & Humidity | Operating temp: -40～75℃ (-40～167°F) Storage temp: -40～85℃ (-40～185°F) Humidity: 5%～95% (non-condensing) |
| Mechanical Specifications | |
| Mechanical Specs | Enclosure: IP41-rated aluminum alloy Mounting: DIN-rail Cooling: Fanless natural convection Weight: 0.45kg Package weight: 0.55kg Dimensions: 144×104.5×47.5mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (red) Fiber ports: 9-10 (green) Ethernet ports: Yellow (Link/ACT), Green (PoE) |
| Reliability | |
| MTBF | 300,000 hours |
| Compliance Standards | |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS): 10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI): 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 years |
