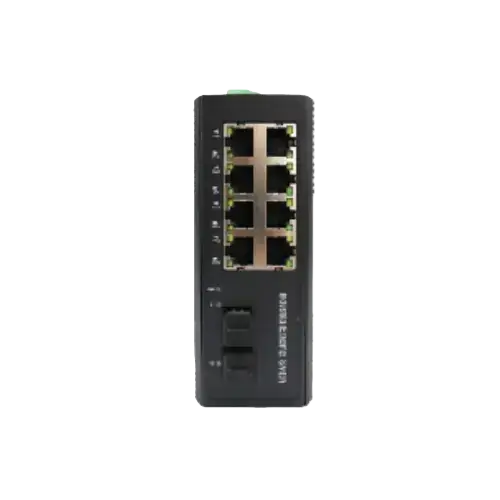

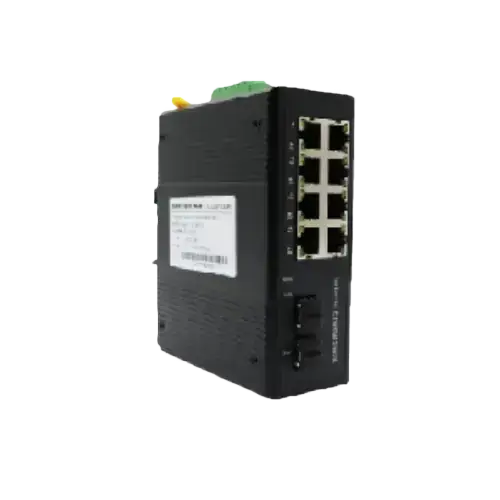

2 SFP Ports + 8 PoE Ports Industrial Unmanaged PoE Switch
Model：SIE2000-E-8GE2GS-POE-M0-L
- 8 × 10/100/1000Base-T and 2 × 1000Base-X SFP Optical Ports
- Switching Capacity: 20Gbps
- Packet Forwarding Rate: 14.88Mpps
- MAC Address Table: 8K
- Packet Buffer: 2M bit
- Operating Power DC48-57V with Reverse Connection Protection
- Built-in 8 PoE+ Ports Compliant with IEEE 802.3af/at Standards
- 6KV Surge Protection, 8KV Contact ESD Protection, 15KV Air ESD Protection
- Electromagnetic Interference Resistance: Class A
- IP41 Protection Rating, Fanless DIN Rail Design, Operating Temperature -40°C to 75°C, Max PoE+ Power: 120W
The SIE2000-E-8GE2GS-POE-M0-L is a full-gigabit unmanaged industrial PoE switch. It supports 8 × 10/100/1000Base-T Ethernet ports and 2 × 1000Base-X optical ports, with all electrical ports compliant with IEEE 802.3af/at PoE standards. Operating at -40°C to 75°C, it withstands harsh outdoor cabinet environments. Featuring DIN rail mounting, IP41 protection, and LED indicators, it provides a plug-and-play industrial solution with reliable network performance.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-Performance Processor |
| Interfaces | |
| Ethernet Ports | 8 × 10/100/1000Base-T (Auto-Detection) Full/Half Duplex MDI/MDI-X (Auto-Adaptive) Transmission Distance: ≤100m |
| Optical Ports | 2 × 1000Base-X Multimode: 850nm (0-550M), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40KM), 1550nm (0-120KM), 9.5μm/125μm |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane Bandwidth: 20Gbps Packet Forwarding Rate: 14.88Mpps MAC Table: 8K Packet Buffer: 2M Latency: <3μs Switching Mode: Store-and-Forward Power Consumption: <6W (Non-PoE) |
| POE | |
| POE Parameters | PoE Standard: IEEE802.3af/at Max per Port: 15.4W (IEEE 802.3af) Max per Port: 30W (IEEE 802.3at) Compatibility: IEEE 802.3af/at/Auto-Adaptive Output Voltage: DC 48-57V Power Pins: 1/2+, 3/6- |
| Power Parameters | |
| Power Interface | Input Voltage: DC48-57V (PoE) Terminal: 6-pin 5.08mm Spacing Dual Power Redundancy Support Reverse Polarity Protection |
| Operating Environment | |
| Temperature & Humidity | Operating Temp: -40~75℃ (-40~167°F) Storage Temp: -40~85℃ (-40~185°F) Humidity: 5%~95% (Non-Condensing) |
| Mechanical Features | |
| Mechanical Specs | Enclosure: IP41 Aluminum Alloy Installation: DIN Rail Mounting Cooling: Natural Convection (Fanless) Weight: 0.55Kg Packaged Weight: 0.65Kg Dimensions: 144×104.5×47.5mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (Red) Optical Ports: 9-10 (Green) Ethernet Ports: Yellow (Link/ACT), Green (PoE) |
| Mean Time Between Failures | |
| MTBF | 300,000 Hours |
| Industry Standards | |
| Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS):10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI):30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 Years |
