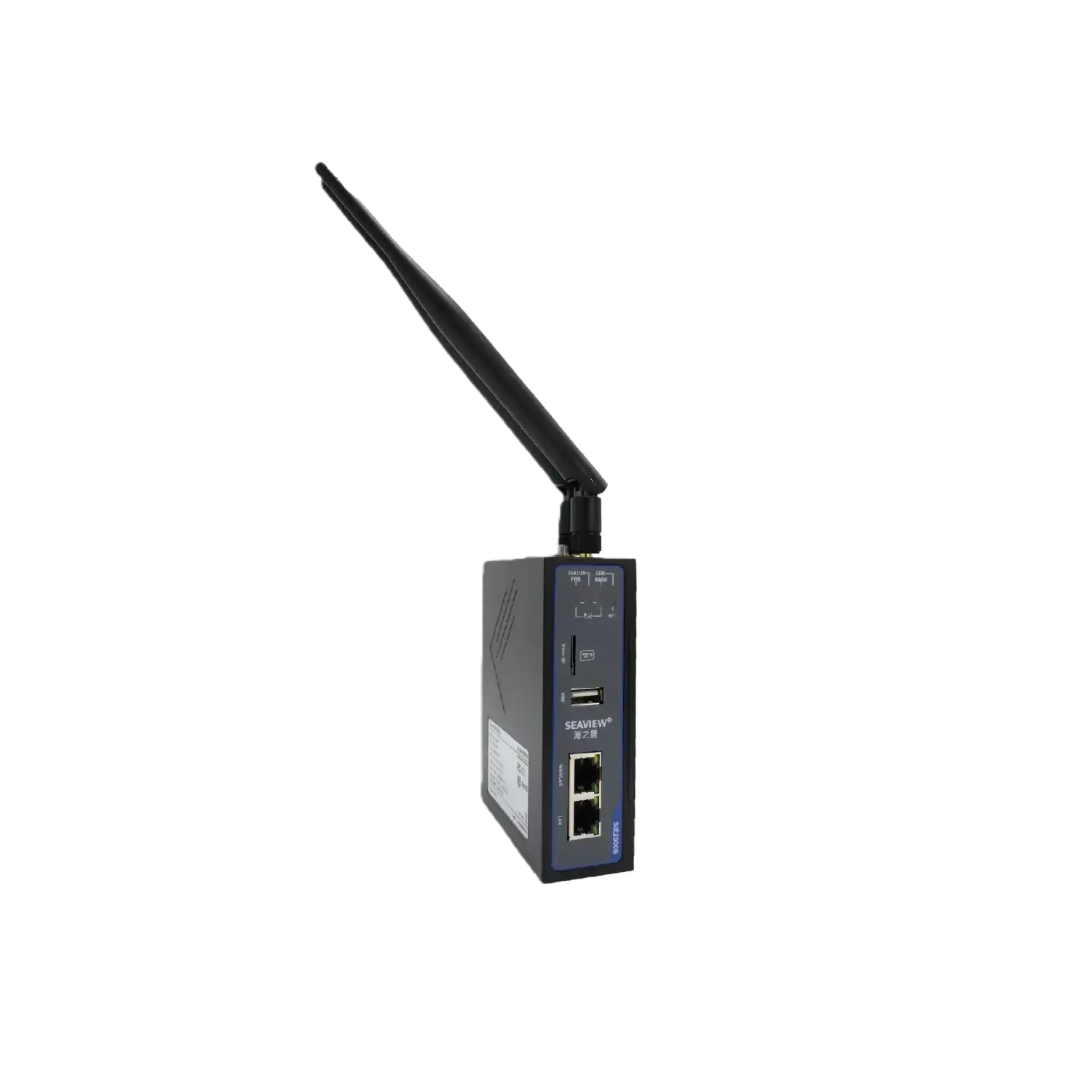

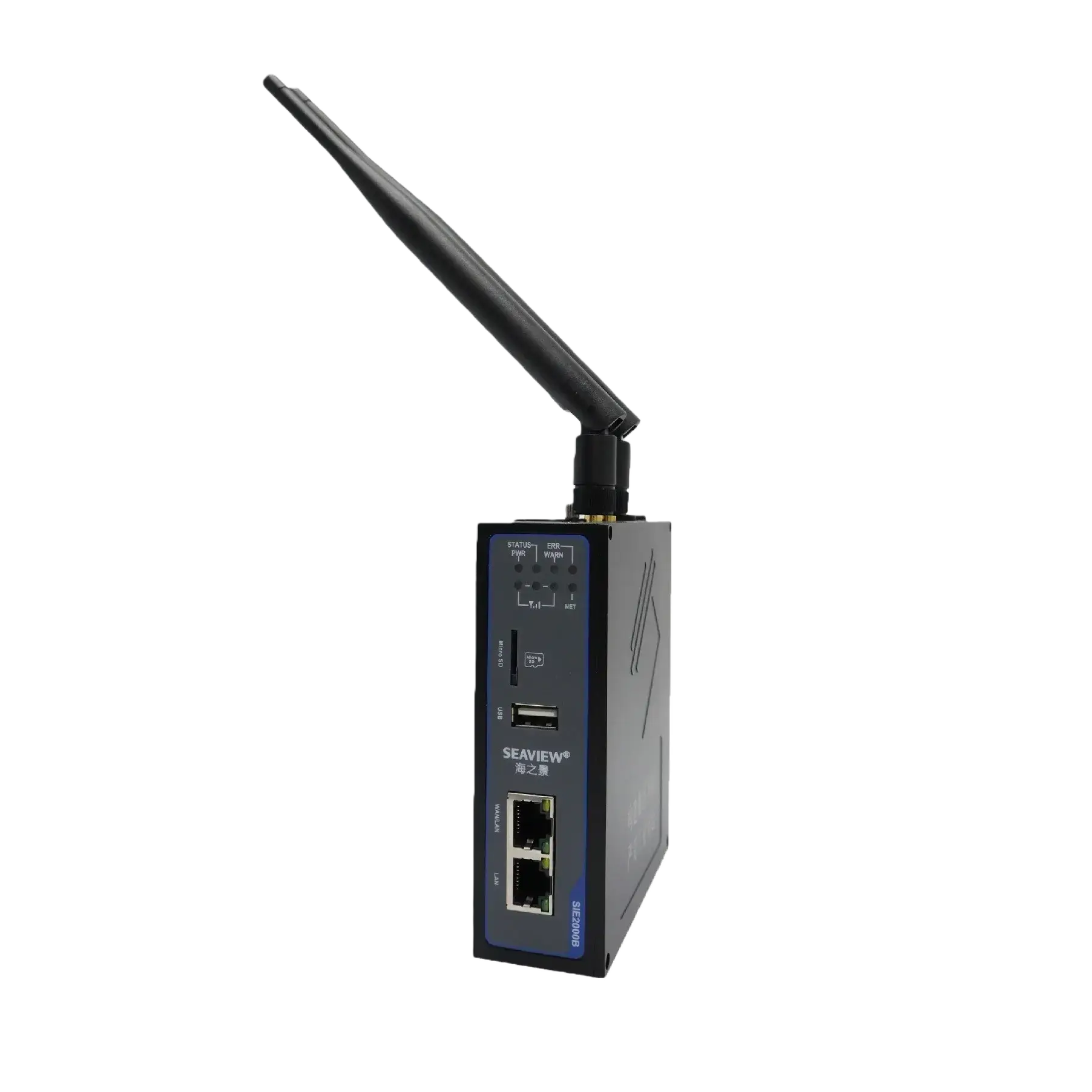

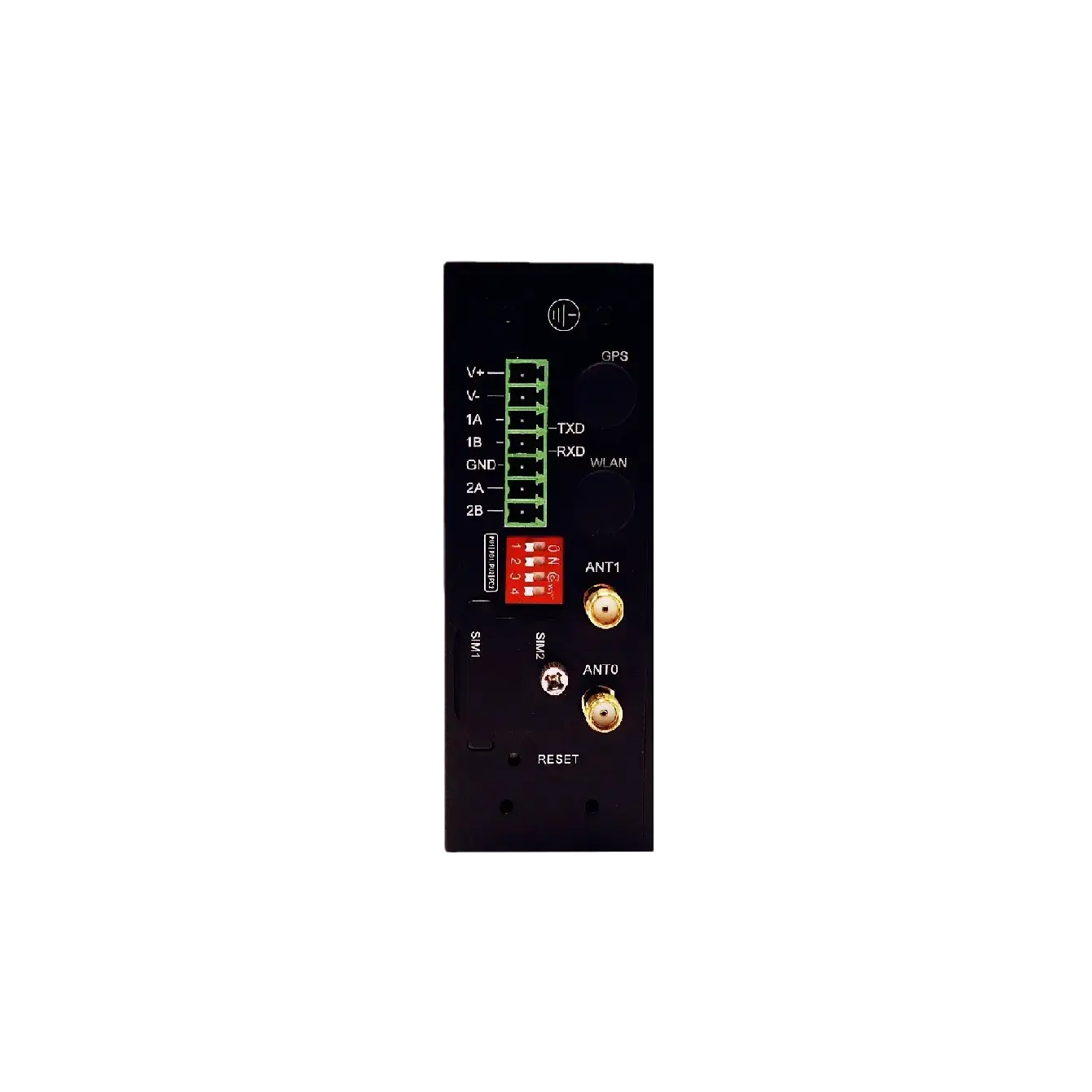

5G Edge Computing Gateway SIE2000B5

The SIE2000B5 Edge Computing Gateway is a lightweight edge computing gateway launched by Haizhijing for the industrial IoT field. Leveraging deployed 5G wireless networks and various broadband services, it provides ubiquitous uninterrupted internet access. With its strong edge computing capabilities, comprehensive security, and wireless access services, it enables connectivity for tens of thousands of devices, providing a high-speed data pathway for true device informatization.

The SIE2000B5 supports mainstream industrial protocols including Modbus TCP/RTU, while also integrating with Alibaba Cloud IoT platform for seamless cloud connectivity. Featuring an open edge computing platform, it enables data optimization, real-time response, agile connectivity, and intelligent analysis at IoT edge nodes. Significantly reduces data traffic between field and central systems, lowering operating costs and reducing cloud pressure. With its excellent product features, easy deployment, and comprehensive remote management functions, the SIE2000B5 helps customers achieve efficient operations and energy conservation.

1. Industrial design suitable for harsh environments:
Industrial-grade design with operating temperatures up to -40℃～75℃, supports +12～48V DC wide voltage input;
IP30 protection rating provides stable and secure network communication for demanding unmanned industrial sites;

2. Strong edge computing capabilities for intelligent real-time data processing:
Powerful edge computing with ARM Cortex-A8 processor, 600MHz frequency, 512MB RAM, and 8GB eMMC, providing computing resources for on-site device data optimization, real-time response, agile connectivity, and intelligent analysis;

3. Easy management and flexible application, supports large-scale deployment:
Web interface support, simple and easy to use;
In industrial IoT applications facing thousands of machine connections, the gateway management function effectively solves device management and deployment challenges;

4. Multi-protocol support for easy data collection, processing and cloud integration:
Supports local data preprocessing to reduce upload traffic, alleviate cloud pressure, and lower operating costs;
Supports mainstream industrial protocols including Modbus RTU/TCP/ASCII, OPC UA, BACnet, ISO on TCP, etc.;
Integrates with Alibaba Cloud public cloud platform, providing diversified IoT cloud ecosystem solutions;

5. High-reliability design ensures reliable data transmission:
Device self-healing: Built-in watchdog technology for automatic fault recovery, ensuring high device availability;
Link detection: Application-layer link detection enables automatic reconnection after disconnection, ensuring continuous data transmission;
PPP layer detection: Maintains connection with operator networks, prevents forced dormancy, and monitors dial-up connection stability;
Resumable transmission: Automatically stores failed upload data when reporting channel is abnormal, automatically uploads stored data when channel recovers, ensuring reliable data transmission without loss.

The SIE2000B5 is suitable for data collection and monitoring of distributed unmanned field equipment. Digital application scenarios include:

The SIE2000B5 supports multiple industrial protocol data. After parsing, data can be processed at the edge side, filtered, and forwarded to cloud platforms and local SCADA platforms. Platform-side functions include remote equipment monitoring and data trend analysis. The device-to-cloud solution helps enterprises connect equipment to cloud platforms, monitor equipment status in real-time, explore equipment value, accumulate equipment data, provide better services, and achieve digital transformation.

Specific application solution:
