Gigabit Industrial 1 Fiber + 1 Copper Media Converter
Model：SIE3000-E-1GE1GS-M0-L
- 1×10/100/1000Base-T RJ45 and 1×1000Base-X SFP+
- Switching Capacity: 4Gbps, Packet Forwarding Rate: 2.976Mpps
- Input Voltage: Power 1 (Primary): 12~52V DC; Power 2 (Backup): 12~52V DC, Reverse Polarity Protection
- Lightning Protection: 6kV, Standard: IEC6000-4-5
- Operating Temperature: -40℃~75℃

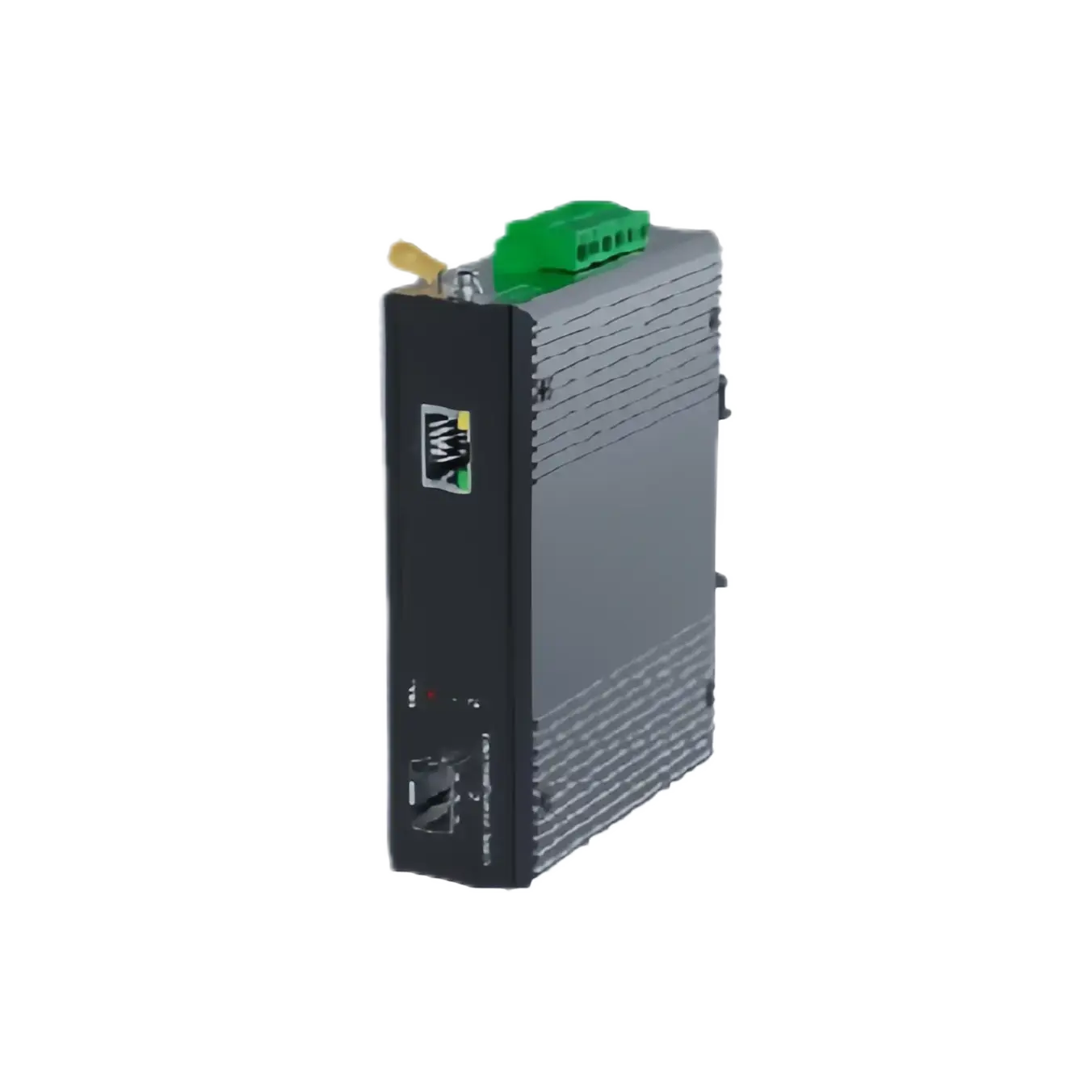

The SIE3000-E-1GE1GS-M0 is a gigabit industrial fiber media converter with 1 optical and 1 electrical port. It features 1 × 10/100/1000Base-T Ethernet port and 1 × 1000Base-X optical port. With an operating temperature range of -40°C to 75°C, it withstands harsh outdoor cabinet environments. Equipped with DIN rail mounting, IP40 protection, and LED indicators, it provides a plug-and-play industrial solution with reliable network performance.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-Performance Processor |
| Interfaces | |
| Ethernet Ports | 1×10/100/1000Base-T (Auto-Detection) Full/Half Duplex MDI/MDI-X (Auto-Adaptive) Transmission Distance: ≤100m |
| Optical Ports | 1×1000Base-X Multimode: 850nm (0-550M), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40KM), 1550nm (0-120KM), 9.5μm/125μm |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane Bandwidth: 4Gbps Packet Forwarding Rate: 2.976Mpps MAC Table: 2K Packet Buffer: 1M Latency: <3μs Switching Mode: Store-and-Forward Power Consumption: <3W (Non-PoE) |
| Power Parameters | |
| Power Interface | Input Voltage: DC12-52V (Non-PoE) Terminal: 6-pin 5.08mm Spacing Dual Power Redundancy Support Reverse Polarity Protection |
| Operating Environment | |
| Temperature & Humidity | Operating Temp: -40~75℃ (-40~167°F) Storage Temp: -40~85℃ (-40~185°F) Humidity: 5%~95% (Non-Condensing) |
| Mechanical Features | |
| Mechanical Specs | Enclosure: IP40 Aluminum Alloy Installation: DIN Rail Mounting Cooling: Natural Convection (Fanless) Weight: 0.35Kg Packaged Weight: 0.45Kg Dimensions: 116×87×33.8mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (Red) Optical Port: Port 2 (Green) Ethernet Ports: Yellow (Link/ACT), Green (PoE) |
| Mean Time Between Failures | |
| MTBF | 300,000 Hours |
| Industry Standards | |
| Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS):10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI):30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 Years |
