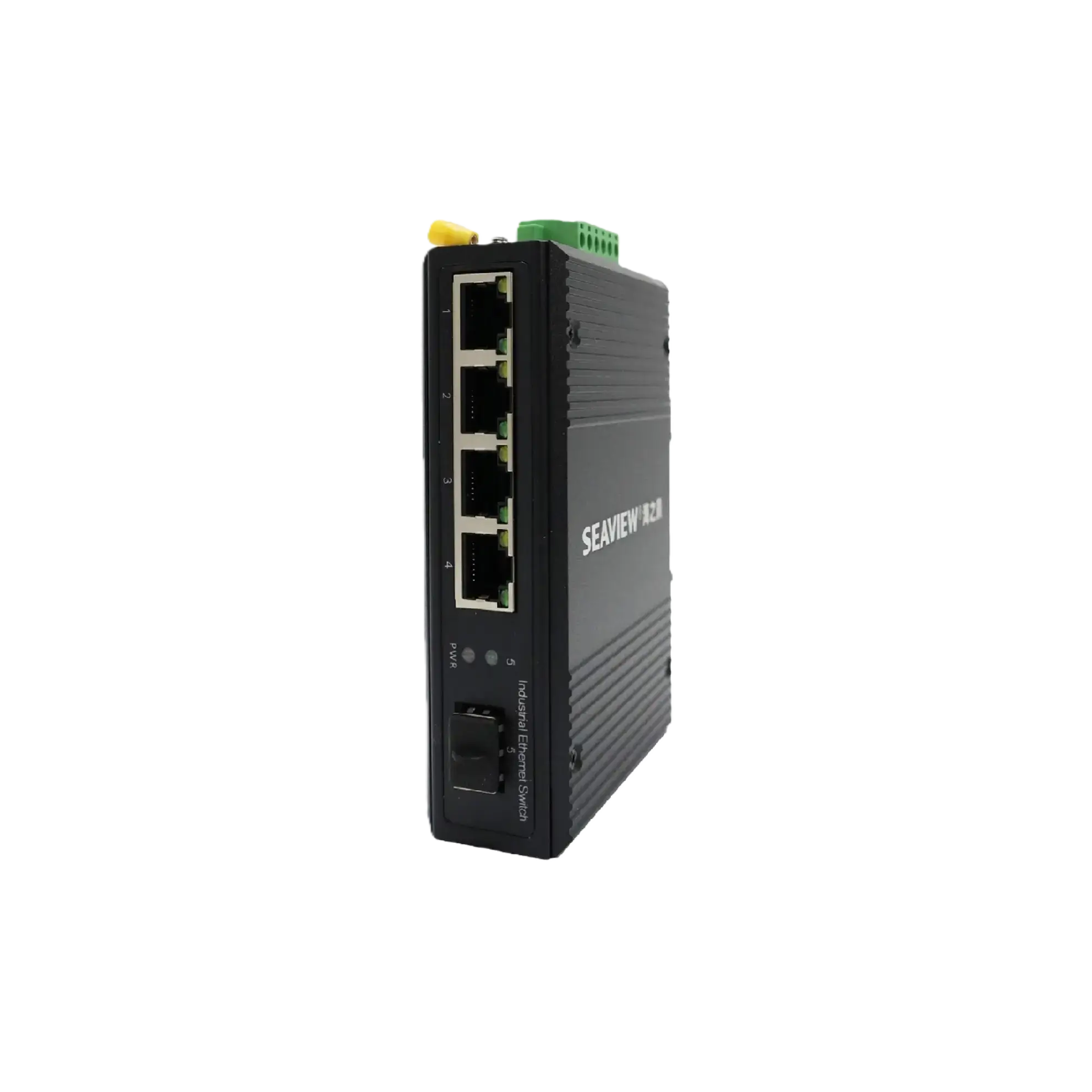

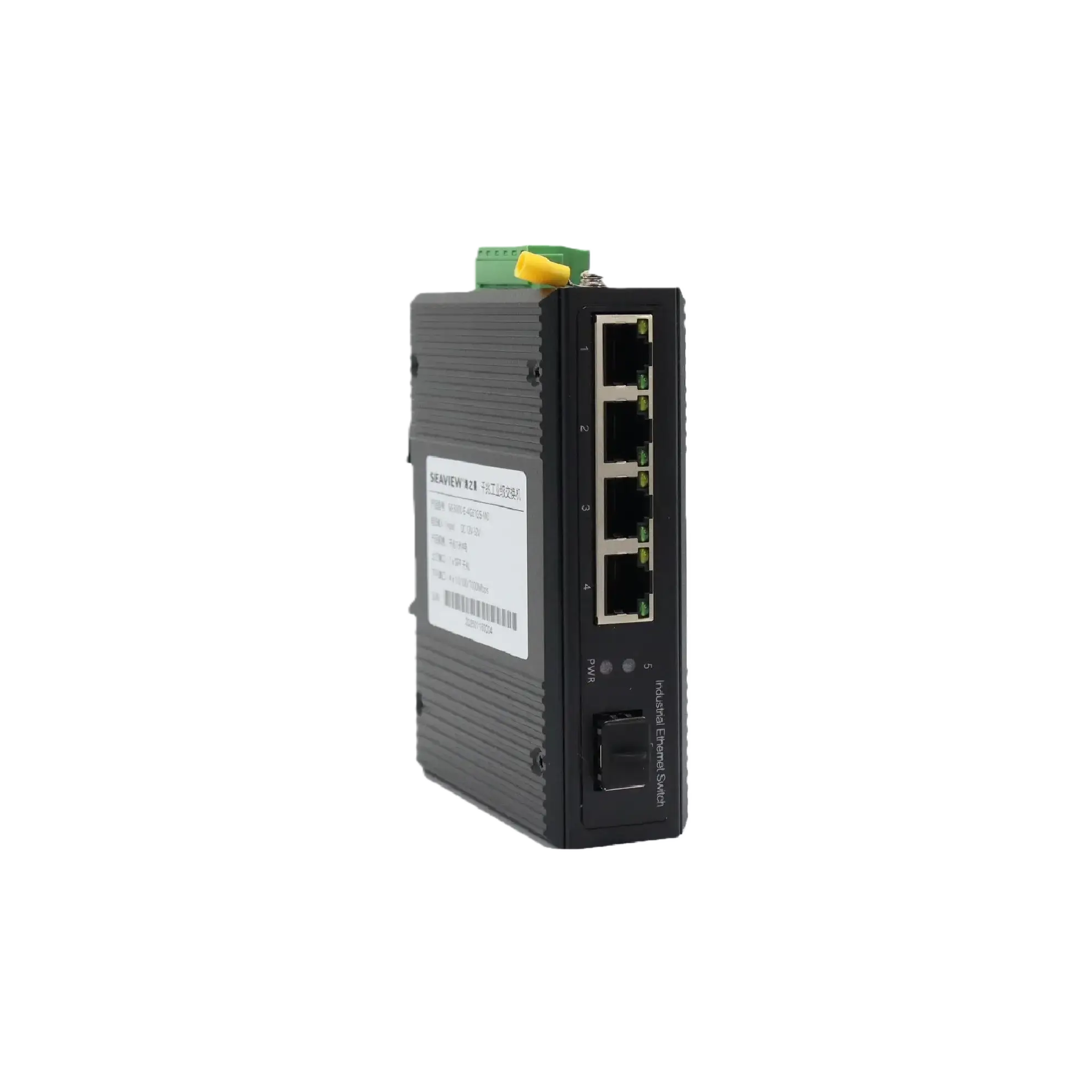

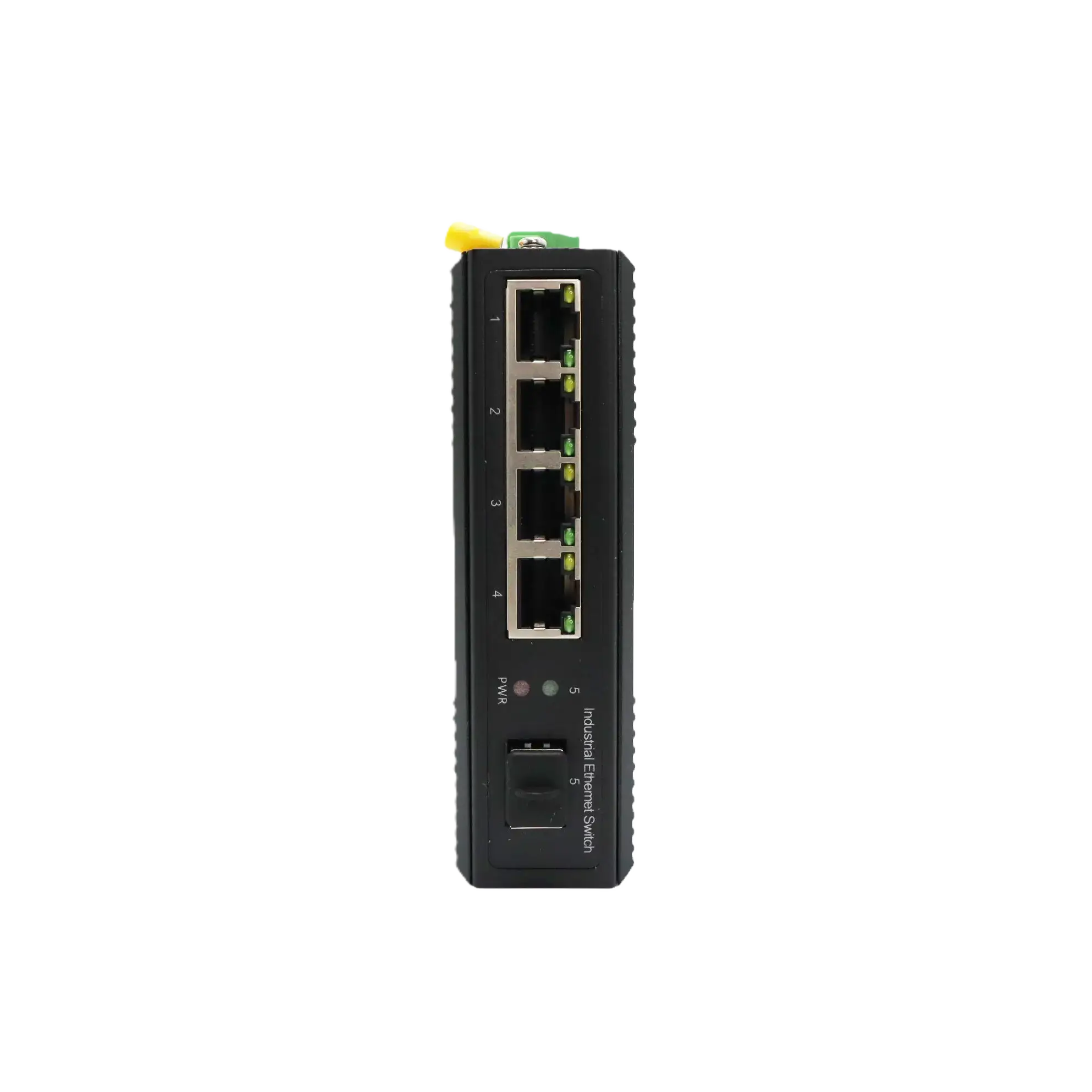

Gigabit Industrial 1 Fiber + 4 Copper Media Converter
Model：SIE3000-E-4GE1GS-M0-L
- 4×10/100/1000Base-T RJ45 and 1×1000Base-X SFP+
- Switching Capacity: 10Gbps, Packet Forwarding Rate: 7.44Mpps
- Input Voltage: Power 1 (Primary): 12~52V DC; Power 2 (Backup): 12~52V DC, Reverse Polarity Protection
- Lightning Protection: 6kV, Standard: IEC6000-4-5
- Operating Temperature: -40℃~75℃
The SIE3000-E-4GE1GS-M0 is a gigabit industrial fiber media converter with 1 optical and 4 electrical ports. It features 4 × 10/100/1000Base-T Ethernet ports and 1 × 1000Base-X optical port. With an operating temperature range of -40°C to 75°C, it withstands harsh outdoor cabinet environments. Equipped with DIN rail mounting, IP40 protection, and LED indicators, it provides a plug-and-play industrial solution with reliable network performance.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-Performance Processor |
| Interfaces | |
| Ethernet Ports | 4×10/100/1000Base-T (Auto-Detection) Full/Half Duplex MDI/MDI-X (Auto-Adaptive) Transmission Distance: ≤100m |
| Optical Ports | 1×1000Base-X Multimode: 850nm (0-550M), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40KM), 1550nm (0-120KM), 9.5μm/125μm |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane Bandwidth: 10Gbps Packet Forwarding Rate: 7.44Mpps MAC Table: 2K Packet Buffer: 1M Latency: <3μs Switching Mode: Store-and-Forward Power Consumption: <3W (Non-PoE) |
| Power Parameters | |
| Power Interface | Input Voltage: DC12-52V (Non-PoE) Terminal: 6-pin 5.08mm Spacing Dual Power Redundancy Support Reverse Polarity Protection |
| Operating Environment | |
| Temperature & Humidity | Operating Temp: -40~75℃ (-40~167°F) Storage Temp: -40~85℃ (-40~185°F) Humidity: 5%~95% (Non-Condensing) |
| Mechanical Features | |
| Mechanical Specs | Enclosure: IP40 Aluminum Alloy Installation: DIN Rail Mounting Cooling: Natural Convection (Fanless) Weight: 0.35Kg Packaged Weight: 0.45Kg Dimensions: 116×87×33.8mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (Red) Optical Port: Port 5 (Green) Ethernet Ports: Yellow (Link/ACT), Green (PoE) |
| Mean Time Between Failures | |
| MTBF | 300,000 Hours |
| Industry Standards | |
| Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS):10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI):30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 Years |
Software Specifications:
| Feature Type | Function Description |
| Network Topology | Ring Topology: Supported Star Topology: Supported Bus Topology: Supported Tree Topology: Supported Hybrid Topology: Supported |
| POE Support (Optional) | PoE Ports: Ports 1-4 PoE Protocol: 802.3af, 802.3at Pin Assignment: 12+,36- PoE Management: Supported |
| Layer 2 Switching | Auto-Negotiation (MDI/MDIX): Supported VLAN Support & Quantity: 256 GVRP: Supported Protocol VLAN: Supported Voice VLAN: Supported Surveillance VLAN: Supported MAC VLAN: Supported EtherChannel/Link Aggregation (802.3ad): Supported LACP: Supported Interface Speed: Supported Duplex Mode: Supported Flow Control: Supported Jumbo Frame: Supported DHCP Client: Supported SNTP Client: Supported Port Statistics: Supported Protected Ports: Supported EEE: Supported ERPS: Supported LLDP: Supported LLDP 802.1 TLV: Supported MSTP/RSTP/STP: Supported STP BPDU Filter: Supported STP BPDU Guard: Supported STP Port Fast: Supported IGMP Snooping: Supported MLD Snooping: Supported MVR: Supported |
| Layer 3 Features | IPv4 Management Address: Supported IPv6 Management Address: Supported Static IPv4 Routes: Supported Static IPv6 Routes: Supported ARP: Supported Loopback Interface: Supported DHCP Server: Supported DNS Server: Supported |
| Convergence Services | ACL: MAC Standard/Extended ACL IPv4 Standard/Extended ACL IPv6 Standard/Extended ACL QoS: QoS Remarking Port Trust Port Rate Limiting Egress Queue Rate Limiting SP, WRR Scheduling Algorithms CoS Mapping, DSCP Mapping, IP Precedence Mapping |
| Management | User Management: Supported System Log: Supported Firmware Upgrade: Supported Configuration File Download/Upload: Supported SNMP: V1/V2/V3 Supported Web Management: Supported CLI: Supported Telnet/SSH: Supported RMON: Supported |
| Security | Management Channel Configuration: Supported AAA Authentication: Supported 802.1X Authentication: Supported MAC-Based Authentication: Supported Web-Based Authentication: Supported DoS Protection: Supported Dynamic ARP Inspection: Supported DHCP Snooping: Supported IP Source Guard: Supported Port Security: Supported Protected Ports: Supported Storm Control: Supported |
| Diagnostics | RAM Log: Supported Flash Log: Supported Port Mirroring: 1:1 or 1:M Ping: Supported Traceroute: Supported Electrical Port Test: Supported Optical Module Info: Supported UDLD Protocol: Supported |
