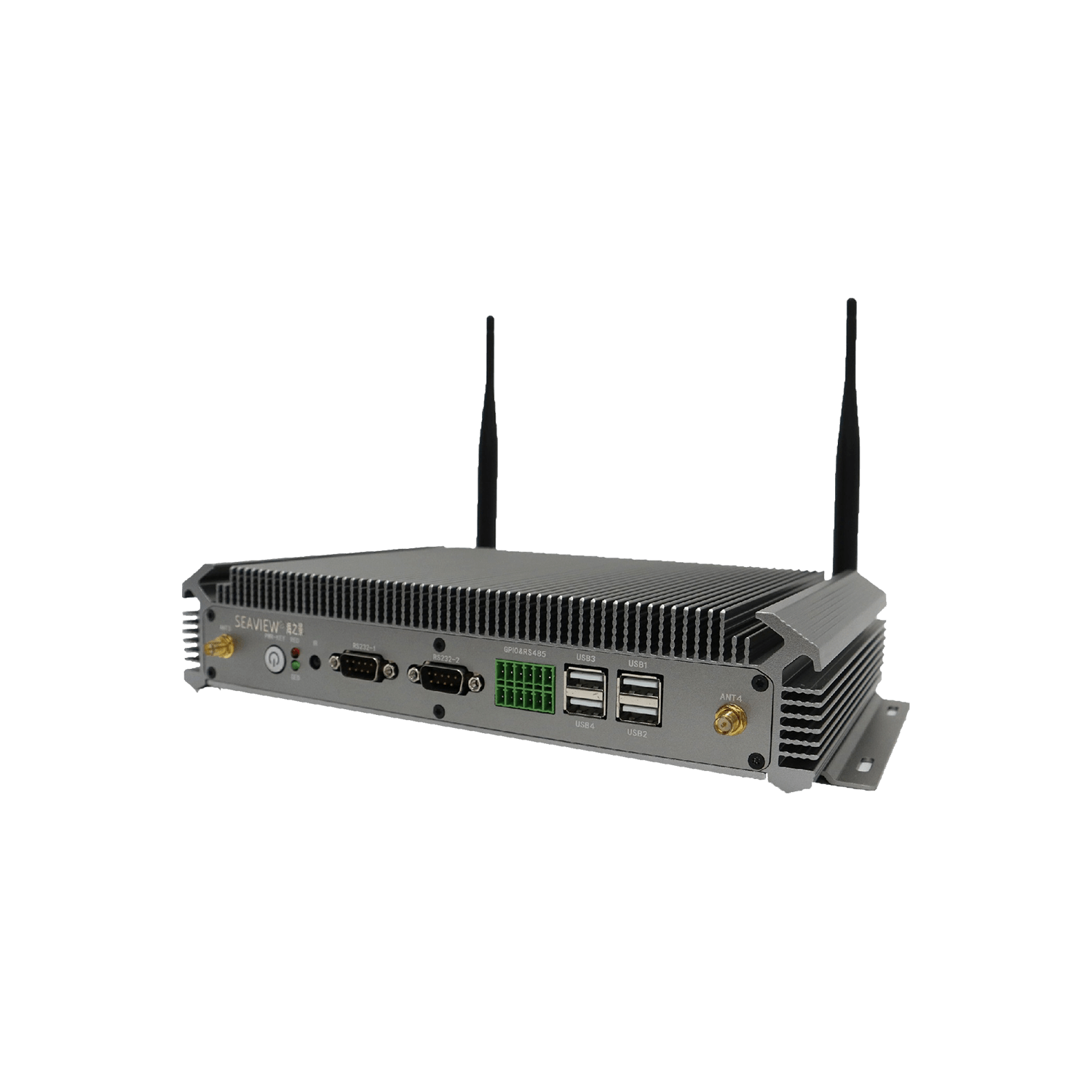

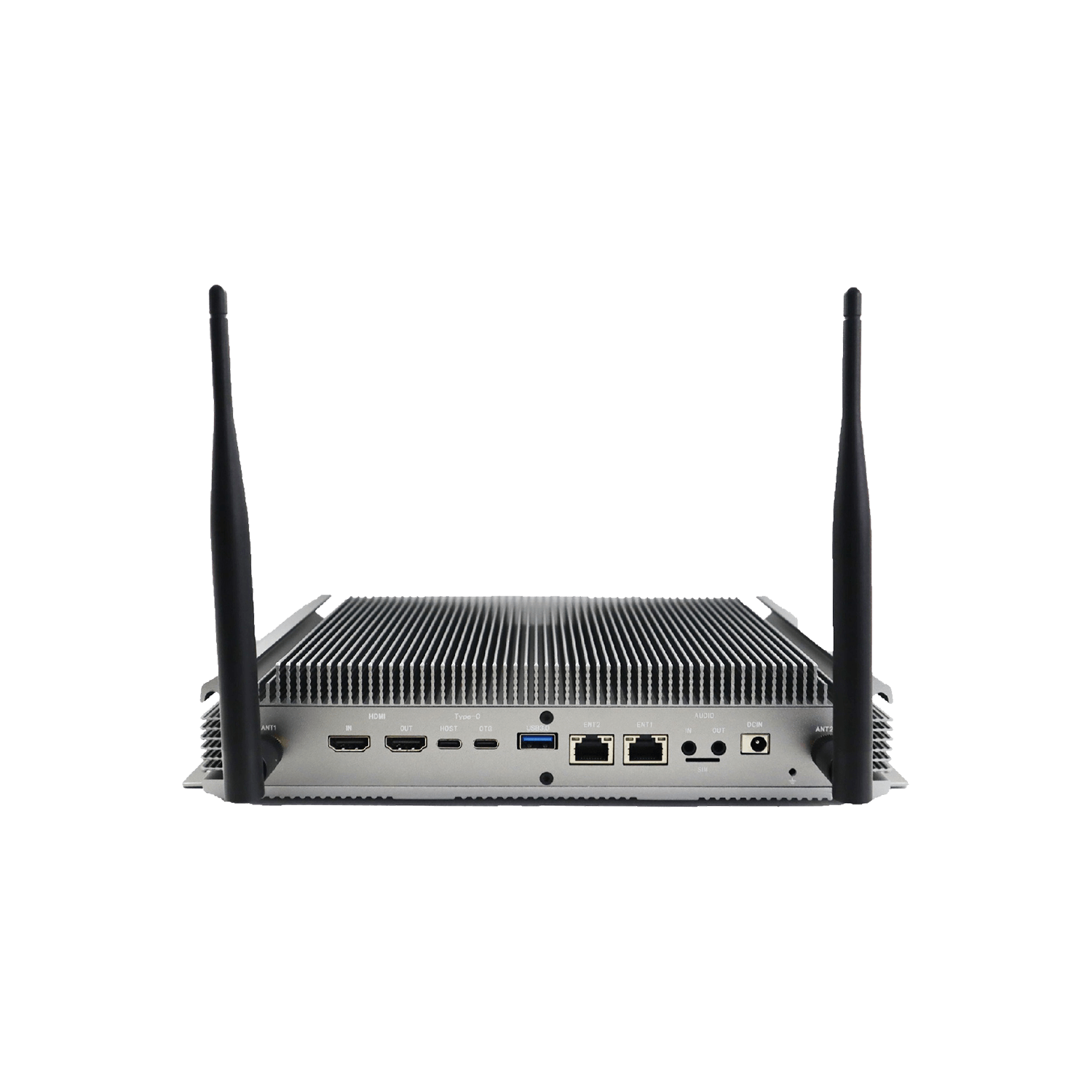

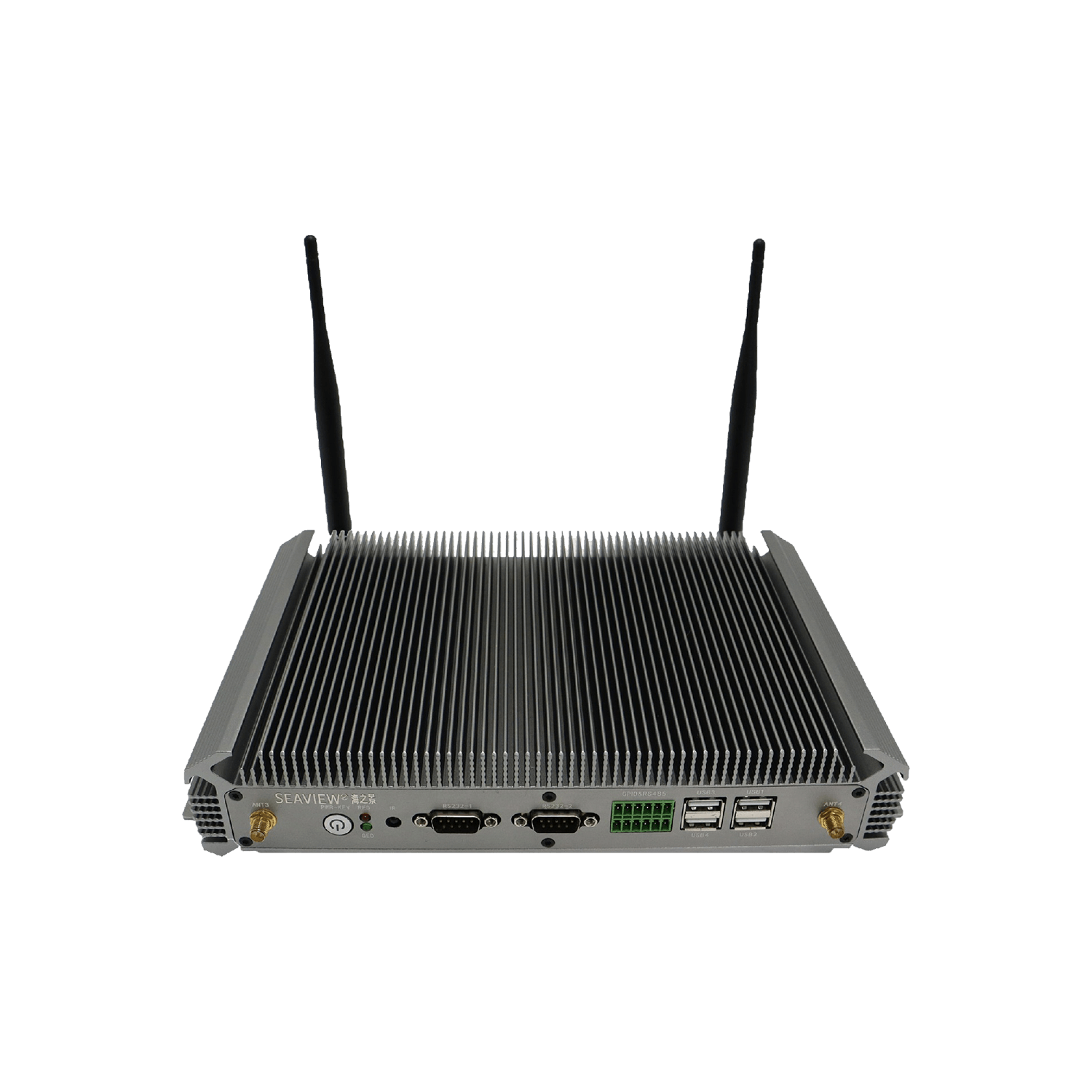

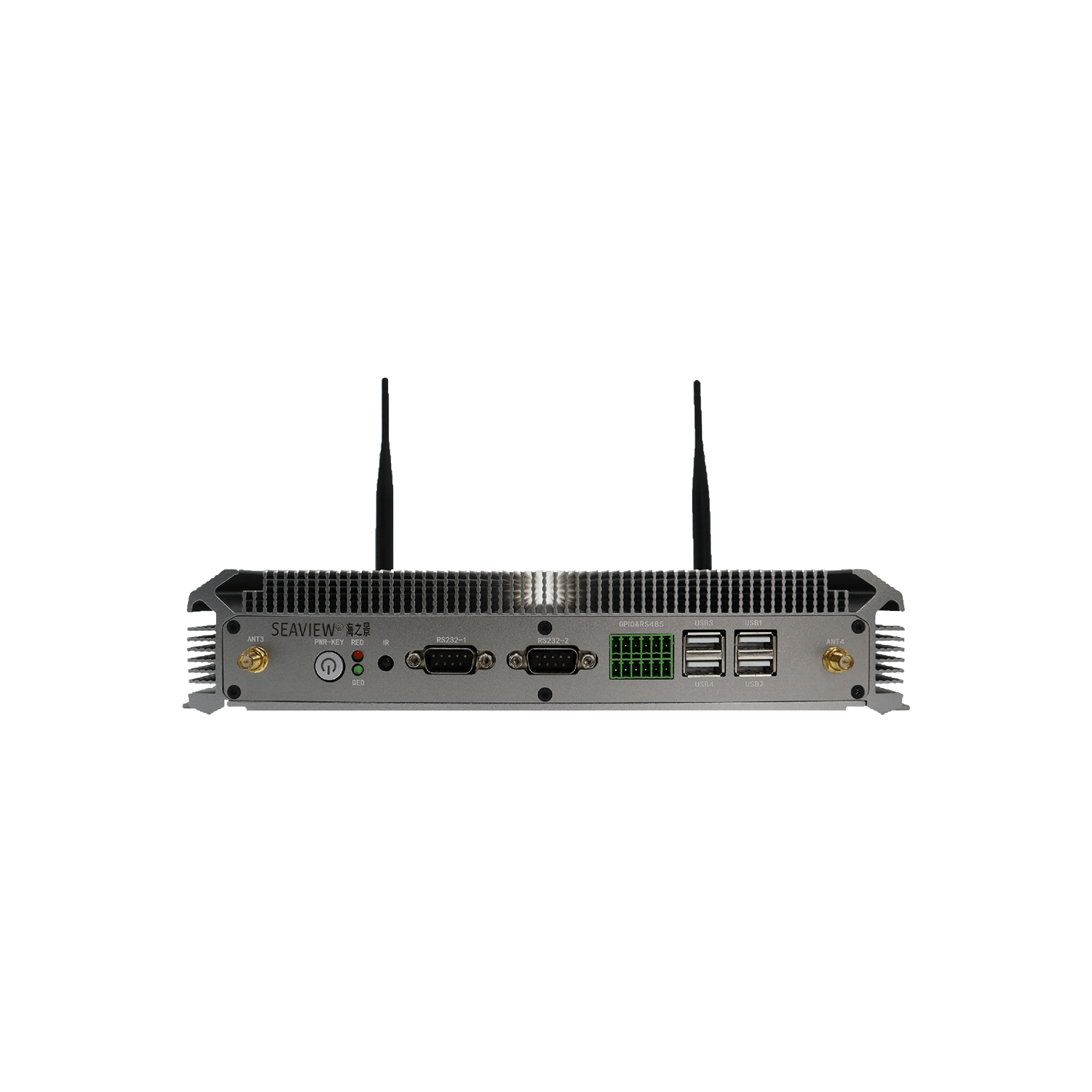

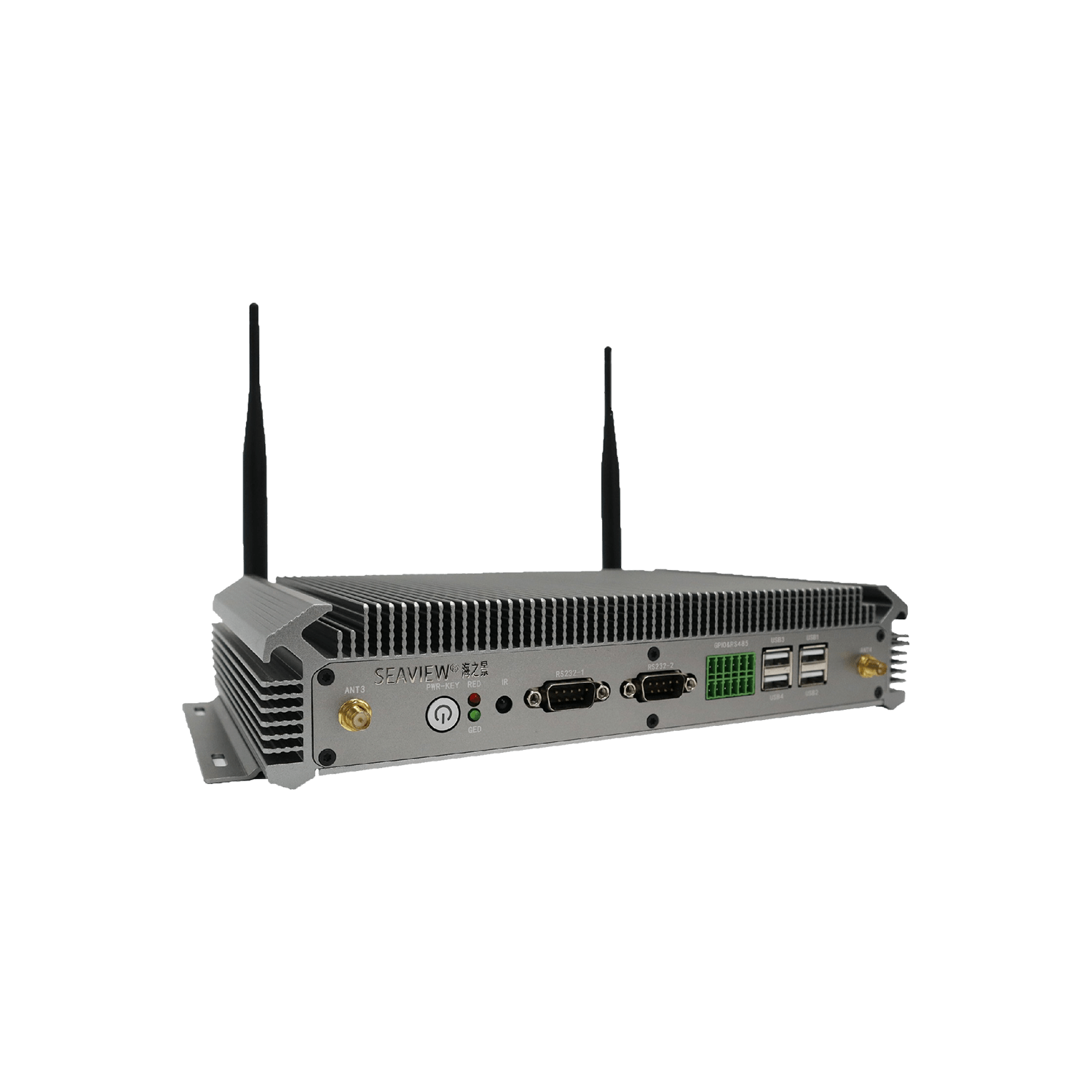

HarmonyOS Smart Industrial Controller
Model：SIE2000HK4
- HarmonyOS operating system, RK3588 processor, supports 6Tops computing power, 8GB RAM, 128GB storage
- Supports 5G network communication, dual-band Wi-Fi 2.4/5.8G, Bluetooth BT5.0
- 1 USB3.0 port, 4 USB2.0 ports, HDMI input/output interfaces
- RJ45 Ethernet port with 1000M/100M/10M auto-negotiation
- 2 RS232 serial ports, 2 DB9 RS485 serial ports
- 2 DI interfaces, 2 DO interfaces, 1 SIM card slot, DC 12V power
The SIE2000HK4 HarmonyOS Smart Industrial Controller is developed based on the OpenHarmony framework to meet the rapid development needs of AI and industrial interconnection. It features high intelligence, reliability, and security as an autonomous and controllable industrial controller. Widely applicable in edge computing, intelligent displays, camera access processing, industrial control hosts, and educational management hosts, it meets management requirements in comprehensive solution scenarios such as smart transportation, smart cities, intelligent manufacturing, industrial IoT, and education/medical fields.
1. High-reliability design ensures stable operation
Embedded watchdog technology with self-recovery from faults ensures stable operation.
Multi-antenna design enhances wireless signals for stable network performance in various field environments.
2. Comprehensive functionality for fast wireless communication experience
Supports 5G, Wi-Fi, Bluetooth, DI, DO, RS485, RS232, Ethernet, HDMI, audio input/output.
Supports dual-band Wi-Fi (2.4G+5.8G) for stronger wireless communication.
Equipped with an 8-core high-performance processor for high-speed processing and real-time edge computing.
Supports remote upgrades, saving manpower and resources.
Product specifications are as follows:
| Specification | Details |
| CPU | Rockchip RK3588 CPU, 4x Cortex-A76 and 4x Cortex-A55 cores, 2.4GHz frequency |
| GPU | Mali-G610 MP4 |
| NPU | Supports 6Tops computing power |
| Multimedia | Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K 60FPS |
| RAM | 8GB |
| ROM | 128GB |
| 5G | Supports Quectel RM500U-CN module 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz 5G NR NSA: n41/n78/n79 5G NR SA: n1/n28*/n41/n77/n78/n79 Downlink 4×4 MIMO: n1/n41/n77/n78/n79 |
| LTE | Supports Quectel RM500U-CN module LTE Category: Downlink Cat 12, Uplink Cat 13 LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 Downlink 2×2 MIMO: B1/B2/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41 |
| UMTS | Supports Quectel RM500U-CN module WCDMA: B1/B2/B5/B8 |
| Wi-Fi | Dual-band 2.4/5.8G IEEE 802.11a/b/g/n/ac/ax |
| Bluetooth | BT 5.0 Module |
| Power Interface | 12V power input |
| USB3.0 | 1 USB3.0 HOST port |
| USB2.0 | 4 USB2.0 HOST ports |
| Type-C | 2 Type-C ports 1 Type-C HOST port 1 Type-C OTG port |
| HDMI Input | 1 HDMI input port, supports up to 4K@60Hz |
| HDMI Output | 1 HDMI output port, supports up to 4K@60Hz |
| Ethernet | 2 RJ45 ports, 1000M/100M/10M selectable, supports dual Ethernet inputs |
| Audio Input | 1 3.5mm LINE-IN port |
| Audio Output | 1 3.5mm LINE-OUT port |
| RS232 | 2 RS232 serial ports |
| RS485 | 2 DB9 RS485 ports with isolation |
| DI/DO | 2 DI interfaces, 2 DO interfaces |
| Buttons | 1 power button |
| IR Control | 1 IR receiver |
| LED Indicators | 2 power LEDs (1 red, 1 green) |
| Antenna Ports | 8 antenna ports 3 Wi-Fi/Bluetooth antennas 4 5G antenna ports 1 spare |
| SIM Slot | 1 nano SIM slot |
